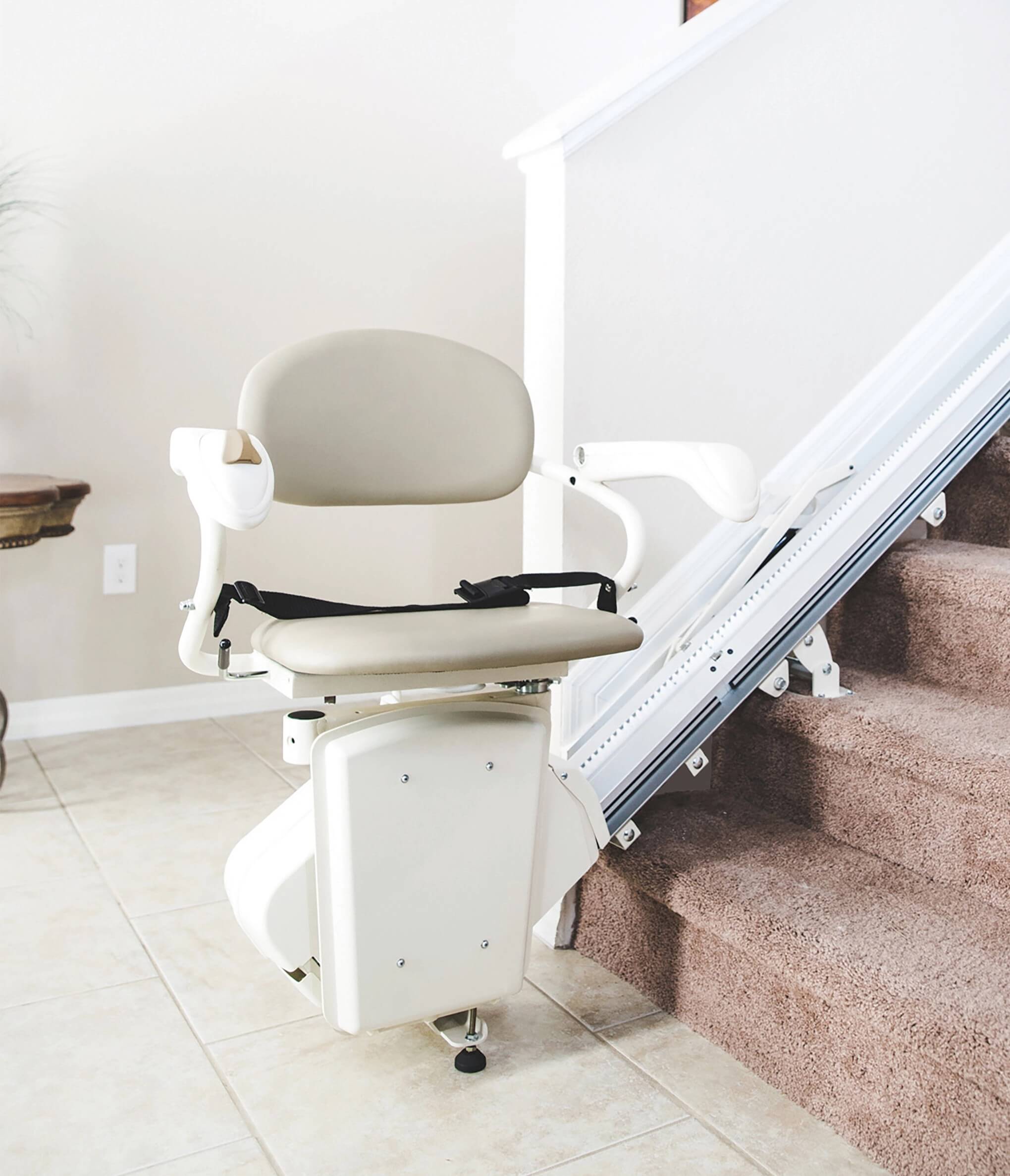

Harmar SL300 Pinnacle Stairlifts
Stairs feeling harder every day? The Harmar Pinnacle SL300 stairlift helps you access every floor in your home effortlessly. With a 300 lbs lifting capacity, this Pinnacle SL300 stairlift ensures safe, comfortable, and confident travel up and down stairs. It’s the perfect stairlift solution for those seeking reliable mobility at home.
- No Grease or Lubrication Operates without grease, keeping your home clean and reducing maintenance.
- Efficient Motor with Battery Life: Nylon polymer gear motor ensures up to 60 cycles on battery power during outages.
- Compact Design for Narrow Staircases. When folded, Pinnacle SL300 is the most compact stairlift in the market. With the rail mounting just 1” from the wall and standing at only 3” tall.
- Smooth Power Seat Swivel and Footrest enhances comfort by providing easy mounting and dismounting.
Assembled in the USA
Harmar Local Dealer in South Florida
Supports up to 600 lb.
Lifetime motor warranty
Features
- The oversized worm gear improves stability, better support and durability, enhancing your overall stairlift experience.
- The power seat swivel and footrest options make easier seating and standing.
- The SL300 is lubrication-free, so there’s no grease to worry about.

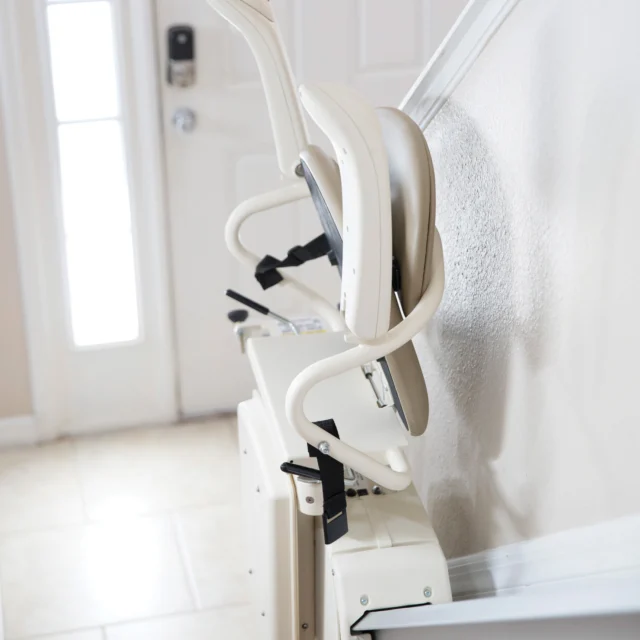

- The stairlift folds up neatly when not in use.
- Even during a power outage, the SL300 works for up to 60 trips on battery.
- Safety sensors in the footrest and chassis stop the lift if something’s in the way.
Specifications
Weight Capacity
- 300 lb
Seat Size
- Seat: 19″ W x 16″ D
- Back: 16.5 W x 9.5″ H
Footrest Size
12.6″ x 14.8″
Speed
20 FPM
Folded Width
- 11″ from wall
- 13.6″ with folding rail
Track Length
- 15’6″ (standard) up to 36′
Incline Limits
27° – 52°
(inclines above 45° may require local jurisdiction approval)

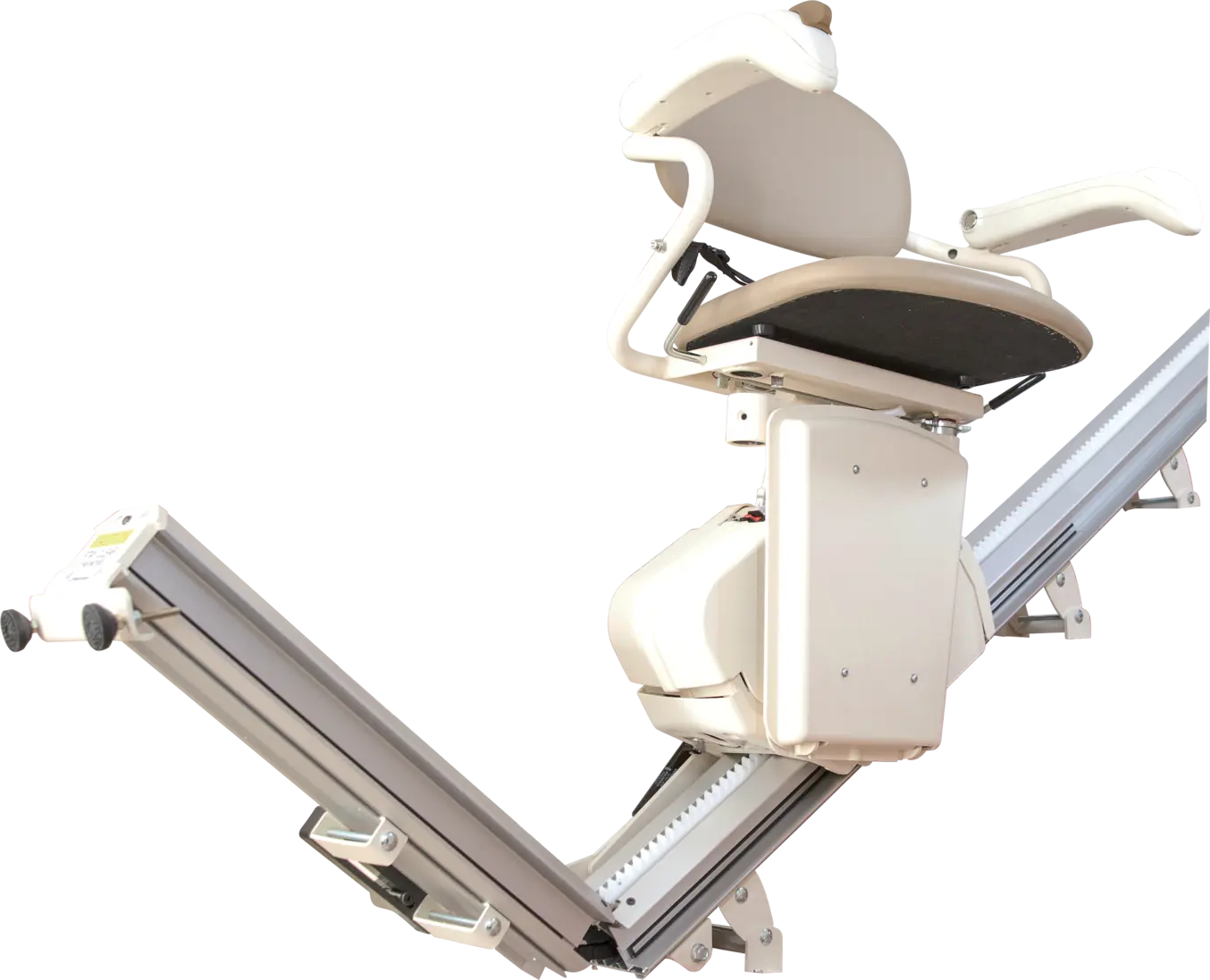

Drive System
- Patented nylon polymer gear rack
- Helical worm gear
Safety Features

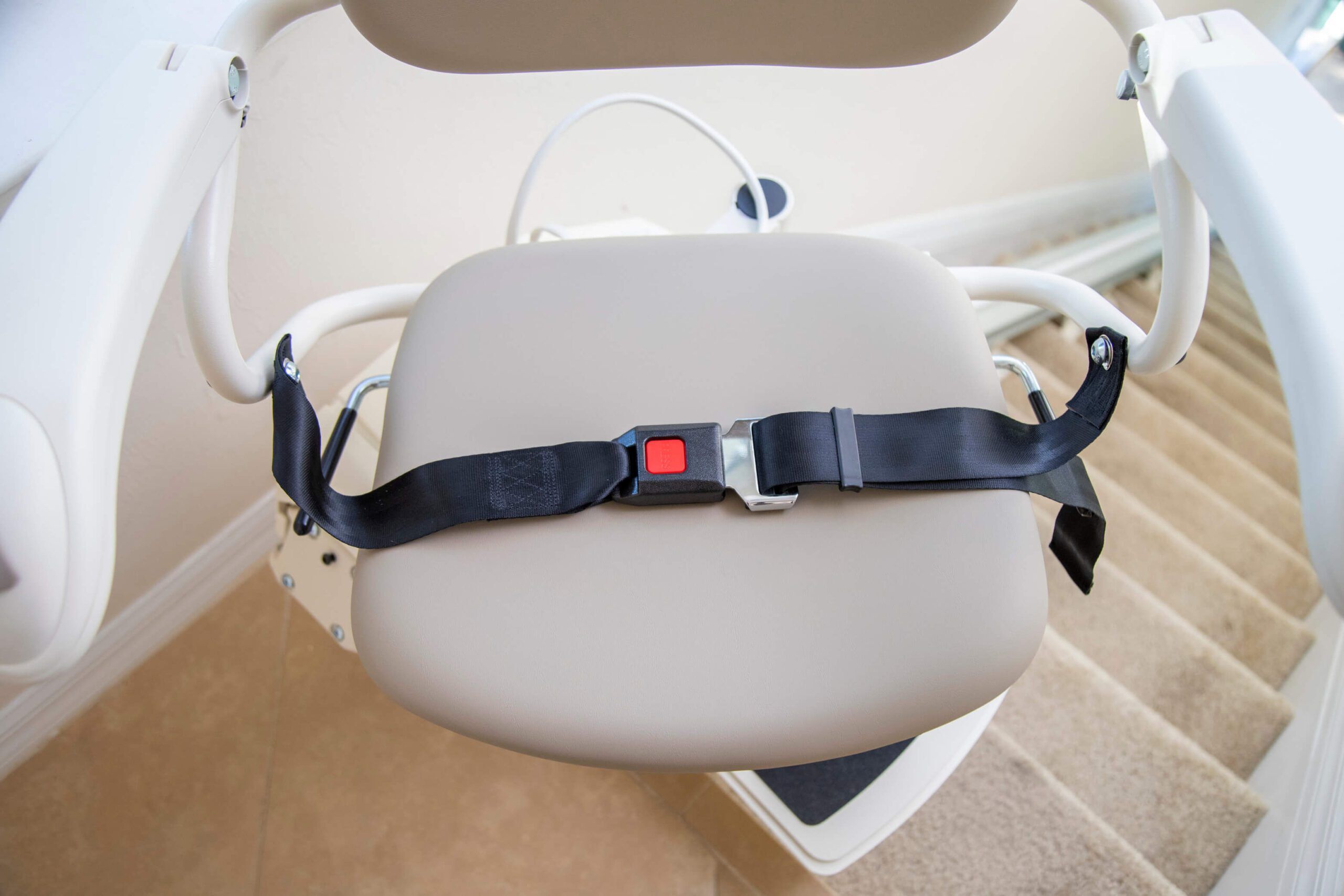

- Seat belt
- Overspeed brake
- Audible alert system
- Swivel seat with interlock

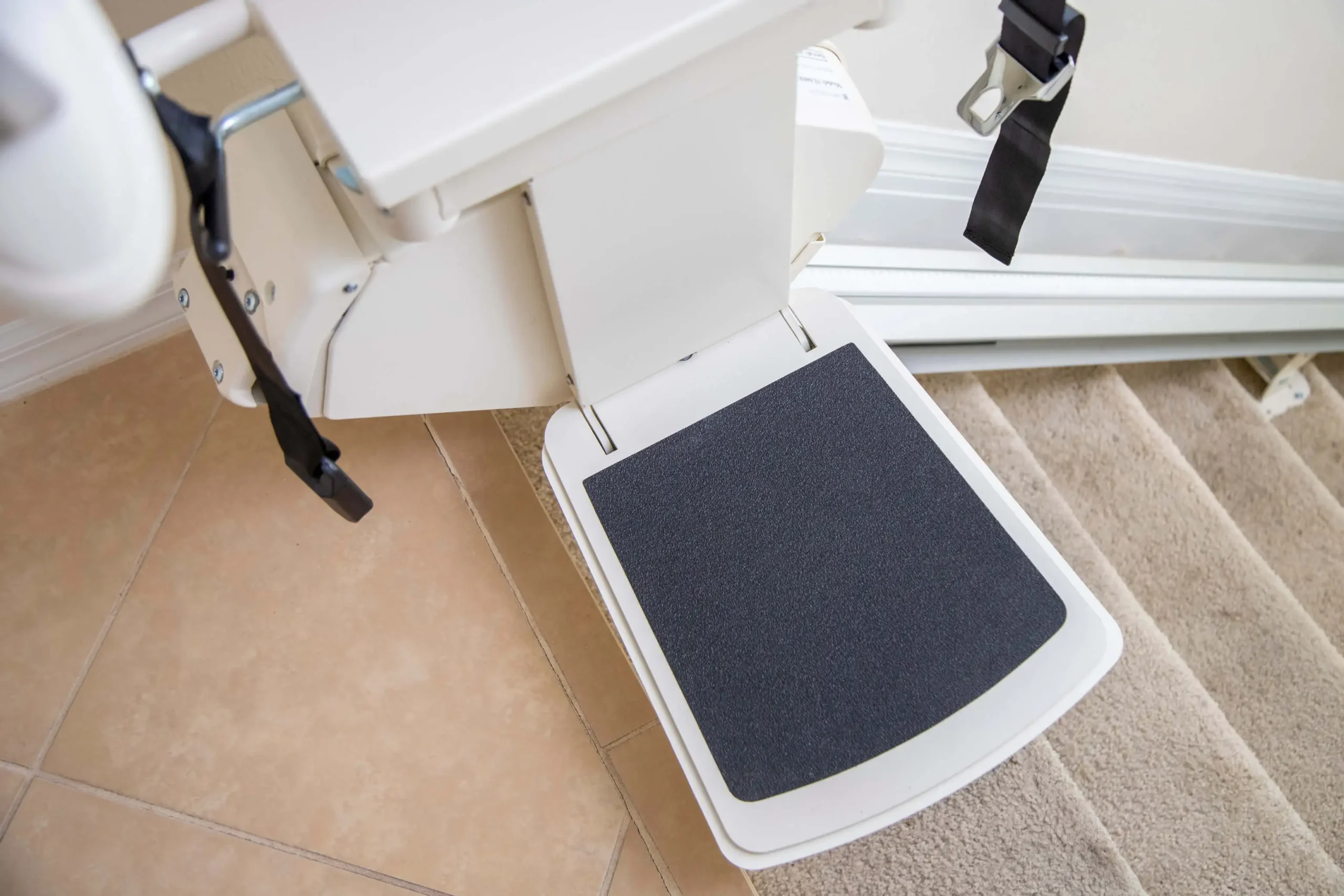

- Footrest obstruction sensor
Available Options
- Retractable seat belt
- Automatic folding rail
- Chassis obstruction sensor
- Key lock
- Extra rail and brackets
- Manual lowering tool
- Power footrest
- Power swivel
Warranty
- Parts: 2 years
- Gear rack: 10 years
- Battery: 1 year
Certifications
- ETL listed
- CSA B44.1/ASME A17.5
- Safety standard ASME A18.1
- Rated commercial & residential
Downloadable Materials
Frequently Asked Questions
Quick information about performance, controls, safety systems, and reliability.
Will the stairlift work during a power outage?
- Yes. The SL300 has a strong battery. It can do up to 60 full trips (up and down) on battery power. This means you won’t get stuck if the power goes out.
Does the seat turn for safer getting on and off?
- Yes. The seat can swivel, and it has a safety lock so the lift only moves when the seat is facing forward. The regular seat turns manually, but you can get an upgrade. The upgrade lets the seat and footrest move automatically, which helps people with weak hands or legs.
How do you control the lift?
The main control is a small switch on the armrest. You also get two wireless remotes. They can “call” the lift to your floor or “send” it to the other floor for someone else.
How fast does the lift go?
The lift moves at 20 feet per minute. This is a safe speed that feels comfortable while still being fast enough to get you up or down the stairs.
What safety sensors does it have?
The SL300 has sensors in the footrest. They stop the lift if something like a shoe or pet is in the way. You can also add extra sensors around the lift for more protection.
How is the rail installed? Will it hurt my walls?
The rail is fixed to the stairs using brackets. It does not attach to the wall, so your walls stay safe. You can put it on either the left or right side of the stairs.
